Manufactured By: Schleibinger Gerate
Accessories for the Schleibinger Viskomat NT viscometer
Mortar Probe
Mortar Probe
• Mortar probe made of hardened stainless steel
• This is used for mortar with a maximum particle size of 2 mm
• Using of a scraper is recommended for this probe. Weight 41g
• This is used for mortar with a maximum particle size of 2 mm
• Using of a scraper is recommended for this probe. Weight 41g
Cement Paste Probe
Cement & Paste Probe
• Cement paste probe made of stainless steel
• This probe is used for cement paste and mortar with a maximum particle size of 0.5 mm
• This probe is used for cement paste and mortar with a maximum particle size of 0.5 mm
Modified Cement Paste Probe
• Formed like the standard cement-paste-probe, but for suspension up to 2 mm of max. Grain diameter
• Built in temperature sensor RTD PT100 1/3 DIN B
• Built in temperature sensor RTD PT100 1/3 DIN B
Scraper
Scraper
• Scraper made of hardened stainless steel
• Strongly recommended for mortar
• Strongly recommended for mortar
Cylinder Probe
Cylinder Probe
• Cylindrical formed test probe for the Viskomat NT
• Including beaker and probe
• Couette system according to DIN 53019
• Diameter 50mm
• Bottom cone formed
• Ddelta = R_outer/R_inner = 1.0847
• Gap size 2.12 mm
• Specimen volume 127.7 ml
• Beaker height 150mm
• At 100 rpm and 200 Nmm: shear rate 129.08 1/s, Shear stress 570.4 Pa, Viscosity 4.42 Pa*s
• Including RTD for temperature measurement
• Net weight 2.3 kg
• Including beaker and probe
• Couette system according to DIN 53019
• Diameter 50mm
• Bottom cone formed
• Ddelta = R_outer/R_inner = 1.0847
• Gap size 2.12 mm
• Specimen volume 127.7 ml
• Beaker height 150mm
• At 100 rpm and 200 Nmm: shear rate 129.08 1/s, Shear stress 570.4 Pa, Viscosity 4.42 Pa*s
• Including RTD for temperature measurement
• Net weight 2.3 kg

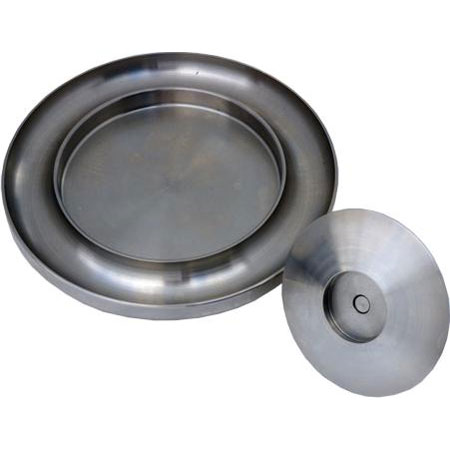

Plate Cone System
Plate/cone System
• Specially developed for glue like specimen
• Fits best for speeds between 0 and 0.5 rpm
• Diameter of the cone: 100mm
• Fits best for speeds between 0 and 0.5 rpm
• Diameter of the cone: 100mm
Basket Probe
Basket Probe
• Double gap system with a net formed surface
• Specially developed for self compacting mortars
• Including special vessel and calibration certificate
• Specially developed for self compacting mortars
• Including special vessel and calibration certificate
Beachure for Temperature Control
Beachure
• A double wall beachure, so that the measurement beaker is running in a water bath, which was circulated by an external cooling/heating unit for example unit.
• Net weight 2.2 kg
• Net weight 2.2 kg
Circulating Cooling and Heating Unit
Circulator
• Unit for cooling and heating water incl. a circulating pump
• Temperature range 0..65 °C
• Deviation better then 0.2 °C
• Digital temperature control unit with digital LED display
• Air cooling
• Cooling power 300W at 20°C
• Heating power 1.0 kW
• Circulation pump rate max. 18 l/min, max * Pumping height 3mWS
• RS232 interface
• Touch-screen
• Main power 1.2 kW
• Dimensions(w x d x h) 35 x 44 x 53 cm
• Net weight 25,3 kg
• Temperature range 0..65 °C
• Deviation better then 0.2 °C
• Digital temperature control unit with digital LED display
• Air cooling
• Cooling power 300W at 20°C
• Heating power 1.0 kW
• Circulation pump rate max. 18 l/min, max * Pumping height 3mWS
• RS232 interface
• Touch-screen
• Main power 1.2 kW
• Dimensions(w x d x h) 35 x 44 x 53 cm
• Net weight 25,3 kg
Shear Stress Controlled Drive
• Shear Stress controlled measurement
• You can run torque ramps ore torque-steps, angel ramps or angel-steps
• The torque is measured with a resolution of 0.1 Nmm.
• The angel is measured with a resolution of 0.01°.
• Internal resolution 0.001°
Oscillation-Mode for the Viskomat NT
• Oscillation mode: max. amplitude 3.6°, max. frequency 20 Hz
• Hint: the standard probes are not symmetric
